Did you know mass spectrometry is used in many fields? It helps in food, pharmaceuticals, and even environmental monitoring. Mass spectrometers measure the mass-to-charge ratio of ions. This guide will explain how they work and their many uses.
Mass spectrometry has five main steps: ionization, acceleration, deflection, detection, and data processing. It turns molecules into ions and uses electric and magnetic fields to manipulate them. This makes mass spectrometry faster and more precise than other methods. It’s even better when paired with techniques like gas chromatography (GC/MS) or high-performance liquid chromatography (HPLC/MS).
We’ll look at the parts of mass spectrometers, like ion sources, mass analyzers, and detectors. We’ll also talk about different ways to ionize samples. These methods affect how well the sample is preserved and how it breaks down.
Key Takeaways:
- Mass spectrometry measures the mass-to-charge ratio of ions, providing valuable information for compound identification and quantification.
- Mass spectrometers consist of an ion source, mass analyzer, and detector, converting molecules into ions manipulated by electric and magnetic fields.
- Various ionization techniques are available, categorized as hard ionization and soft ionization methods, each impacting sample integrity differently.
- Combining mass spectrometry with separation techniques like GC or HPLC enhances its versatility and precision in analyzing complex samples.
- Mass spectrometry finds applications across diverse industries, including proteomics, metabolomics, forensic analysis, and environmental monitoring.
Introduction to Mass Spectrometry
Mass spectrometry is a key analytical tool in science. It helps identify unknown compounds and measure known substances. It also breaks down molecular structures and properties. The mass spectrometry definition is about measuring the mass-to-charge ratio (m/z) of ionized molecules.
Definition and Basic Principles
The basic principles of mass spectrometry include three main steps:
- Ionization: Molecules turn into gas-phase ions.
- Separation: Ions are sorted by their m/z ratios.
- Detection: The amount of each ion is measured and recorded.
Different methods are used for different compounds. For example, Electron Ionization (EI) works well for small organic molecules.
Brief History of Mass Spectrometry
The history of mass spectrometry started in the late 19th and early 20th centuries. Important figures include:
- Eugen Goldstein: Found canal rays, starting mass spectrometry.
- Wilhelm Wien: Showed canal rays can be deflected by magnetic fields.
- J.J. Thomson: Built the first mass spectrometer and found the electron.
- Arthur Jeffrey Dempster: Made the first modern mass spectrometer.
- F.W. Aston: Created the mass spectrograph and found isotopes.
Since then, mass spectrometry has grown a lot. New ionization methods, mass analyzers, and detectors have been developed. Now, it’s a vital tool in science and industry.

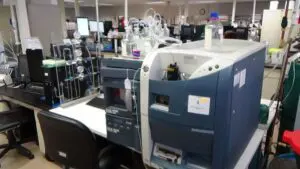

Components of a Mass Spectrometer

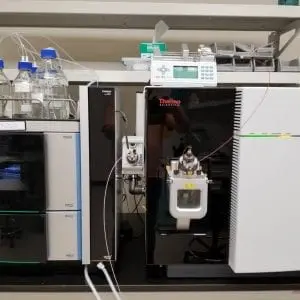

Thermo Scientific TSQ Quantum Ultra Mass Spectrometer
A mass spectrometer is a key tool for analyzing many substances. It has an ion source, a mass analyzer, and a detector. These parts work together to turn samples into gas ions, sort them by mass, and measure their strength.
Ion Source
The ion source starts the ionization process. It uses methods like electron ionization (EI) or matrix-assisted laser desorption/ionization (MALDI) to turn molecules into ions. The choice of method depends on the sample and what’s needed.
For example, EI works well with non-polar, volatile samples. On the other hand, electrospray ionization (ESI) is better for polar or ionic compounds, big or small.
Mass Analyzer
The mass analyzer sorts and separates ions by their mass-to-charge ratios. It uses electric or magnetic fields for this. There are different types, like:
- Quadrupole mass analyzer
- Time-of-flight (TOF) mass analyzer
- Ion trap mass analyzer
Ions are accelerated to the same speed before being deflected. This is based on their mass and charge. Many spectrometers use two or more analyzers for better analysis.
Ion Detection System
The ion detection system measures the ions and plots their m/z ratios against their intensities. This creates a mass spectrum. The m/z ratio shows the ion’s mass and charge.
Today’s detection systems are very sensitive and can find trace amounts in complex samples.
Ionization Techniques
Mass spectrometry ionization techniques are key in analyzing different samples. The choice of method depends on the sample type and the needed level of detail. Hard ionization, like electron ionization (EI), breaks down samples a lot. Soft ionization, including chemical ionization (CI), electrospray ionization (ESI), and matrix-assisted laser desorption/ionization (MALDI), breaks them down less.
Electron Ionization (EI)
Electron ionization is often used in GC-MS for environmental studies. It creates a mass spectrum with the molecular ion and many fragments. This makes it great for figuring out structures. It works well with gases and vapors.
Chemical Ionization (CI)
Chemical ionization breaks down samples less than electron impact ionization. Its mass spectrum has a protonated molecule and a few fragments. It’s good for gases and vapors.
Electrospray Ionization (ESI)
Electrospray ionization is the most popular method. It’s soft and great for big molecules like proteins and peptides. It creates multiply-charged ions. There are also nanospray and static nanospray for even more sensitivity. DESI is another technique for analyzing surfaces.
Matrix-Assisted Laser Desorption/Ionization (MALDI)
MALDI is best for big molecules like proteins and oligonucleotides. It makes singly charged ions and works well with high molecular weight species. It’s also used for imaging mass spectrometry.
Other methods include atmospheric pressure chemical ionization (APCI) and atmospheric solids analysis probe (ASAP). APCI uses a corona discharge for polar, semi-volatile samples. ASAP is a variation for direct sample analysis.
Types of Mass Analyzers
Mass spectrometer analyzers are key in separating ions by their mass-to-charge (m/z) ratios. There are several types used in mass spectrometry, each with its own features and uses.
Quadrupole Mass Analyzer
Quadrupole mass analyzers are the most used because they are fast, sensitive, and easy to use. They use electric fields to control ion paths based on their m/z ratios. These analyzers speed up charged molecules based on their charge and mass using electric fields.
Time-of-Flight (TOF) Mass Analyzer
Time-of-flight mass analyzers are fast. They sort ions by how long it takes them to travel through a tube. The time it takes is related to the ion’s mass and charge. These analyzers use electric fields to speed up ions and measure their flight time.
Ion Trap Mass Analyzer
Ion trap mass analyzers are popular for identifying proteins and metabolites. They use electric fields to catch and release ions for detection. Quadrupole ion traps trap ions in a three-dimensional field, ejecting them based on their mass and charge.
Fourier Transform Ion Cyclotron Resonance (FT-ICR) Mass Analyzer
Fourier transform ion cyclotron resonance (FT-ICR) mass analyzers offer high resolution and accuracy. They are used in biomarker discovery, clinical research, and forensics. These analyzers trap ions in a magnetic field and measure their cyclotron frequency to find m/z ratios.
Mass Spectrometers: Modes of Operation
Mass spectrometers are versatile tools used in many fields. They can work in different ways to meet various needs. These modes help scientists learn about the compounds in a sample. The main modes are full scan, selected ion monitoring (SIM), and multiple reaction monitoring (MRM).
In full scan mode, the spectrometer looks at a wide range of masses. This gives a detailed view of the sample’s makeup. It’s great for finding unknown compounds and for broad studies.
Selected ion monitoring (SIM) focuses on specific masses. This makes it better for counting known compounds. It’s used in areas like environmental checks, drug tests, and forensic work, where precision is key.
Multiple reaction monitoring (MRM) is used in tandem mass spectrometry (MS/MS). It watches specific changes in mass, offering high precision for counting. This is perfect for complex samples with many similar compounds. It helps accurately measure specific compounds, even with other substances around.
The right mode depends on what you want to know and the sample’s type. Full scan gives a wide view, while SIM and MRM are better for focused studies. By choosing the right mode, scientists can get the best results from their experiments.
Interpreting Mass Spectra
Mass spectra analysis helps identify and understand compounds. It looks at how they break down. This gives scientists clues about what a sample is made of.
Mass-to-Charge Ratio (m/z)
The mass-to-charge ratio (m/z) is key in mass spectrometry. It shows the mass of an ion compared to its charge. In a mass spectrum, m/z values are on the x-axis, and intensity is on the y-axis.
Modern tools can spot ions that differ by just one atomic mass unit. This means they can be very precise in their analysis.
Isotopic Distribution
Isotopic distribution is crucial in mass spectra. Many elements have different isotopes, leading to multiple peaks. For example, chlorine has 35Cl and 37Cl, while bromine has 79Br and 81Br.
Knowing this helps scientists figure out what elements are in a sample and how much of each.
Fragmentation Patterns
Fragmentation patterns help understand a compound’s structure. When a molecule breaks, it forms smaller pieces with specific m/z values. The highest-mass ion is the molecular ion (M+·), showing the whole molecule.
The most intense ion is called the base peak, with an abundance of 100. Other peaks are compared to this.
Ions’ stability affects their peak height. For instance, carbocations have a stability order: primary < secondary < tertiary. This influences their formation. Acylium ions ([RCO]+) are stable and often seen in ketones’ spectra.
By comparing fragmentation patterns, scientists can spot similarities and differences. This helps in identifying and understanding unknown samples.

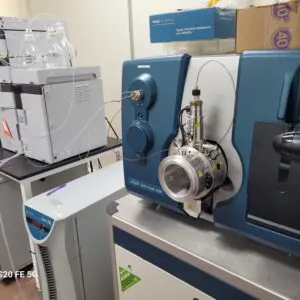

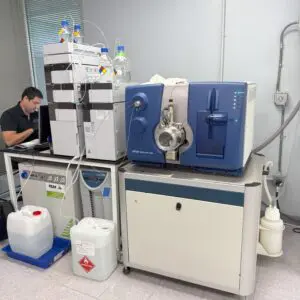

Liquid Chromatography-Mass Spectrometry (LC-MS)
Liquid chromatography-mass spectrometry (LC-MS) is a powerful tool that combines two techniques. It uses liquid chromatography for separation and mass spectrometry for detection. This makes LC-MS great for analyzing many types of compounds, from small molecules to proteins.
It’s widely used in industries like biotechnology, environmental monitoring, and food processing. It’s also used in pharmaceuticals, agrochemicals, and cosmetics.
Principles and Instrumentation
In LC-MS, the sample is first separated using liquid chromatography. The mobile phase interacts with the stationary phase in the LC column. This causes different compounds to elute at different times.
Then, the separated components enter the mass spectrometer. Here, they are ionized using methods like electrospray ionization (ESI). These methods, developed in the 1990s, have made LC-MS more versatile.
After ionization, the molecules are analyzed by the mass analyzer. This separates them based on their mass-to-charge ratio (m/z). Common mass analyzers include quadrupoles, time-of-flight (TOF), and ion traps.
Applications in Proteomics and Metabolomics
LC-MS is widely used in proteomics and metabolomics. In proteomics, it helps identify, characterize, and quantify proteins. The soft ionization techniques like ESI preserve the integrity of large biomolecules.
This allows for the analysis of intact proteins and peptides. Coupled with tandem MS, LC-MS can sequence peptides and identify post-translational modifications.
In metabolomics, LC-MS studies small molecules and metabolites in biological systems. It provides good coverage of a wide range of metabolites. This makes it suitable for untargeted metabolomics studies.
LC-MS has been used in clinical settings since the early 2000s. It’s a more generally applicable alternative to GC-MS. This is because it can analyze a broader range of biological molecules.
Gas Chromatography-Mass Spectrometry (GC-MS)
Gas chromatography-mass spectrometry (GC-MS) is a top-notch analytical tool. It mixes the separating power of gas chromatography with the detection strength of mass spectrometry. This combo helps identify, measure, and figure out the structure of volatile compounds in complex mixes.
The GC-MS works by heating a sample to turn it into vapor. The gas chromatograph then sorts out the vapor based on how it interacts with a stationary phase. Next, the mass spectrometer breaks down the molecules into ions, creating unique “fingerprints” for each compound.
The GC-MS setup has two key parts:
- Gas Chromatograph: Sorts out volatile parts in a mix
- Mass Spectrometer: Gives mass details for spotting and measuring
- Ion Source: Turns neutral molecules into ions
- Quadrupole Mass Analyzer: Picks and checks ions by mass-to-charge ratio (m/z)
- Detector: Captures data as mass spectra
GC-MS is used in many fields, like food and flavor checks, environmental checks, forensic work, and drug quality control. It’s great for finding volatile organic compounds (VOCs), BTEX compounds from oil, and tiny elements in materials. It’s also used in airport security to find substances in luggage or on people.
By combining gas chromatography and mass spectrometry, GC-MS boosts the ability to spot tiny amounts of chemicals in complex samples. This makes GC-MS a key tool for research, quality checks, and following rules in many areas.
Tandem Mass Spectrometry (MS/MS)
Tandem mass spectrometry, also known as MS/MS or MS2, is a powerful analytical technique. It involves multiple stages of mass analysis. This method uses two or more mass analyzers in series, with an additional reaction step between each stage. By employing tandem mass spectrometry principles, researchers can gain valuable insights. They can understand the structural elucidation and quantitative analysis of various compounds.
Tandem mass spectrometry instrumentation typically consists of four major sections. These include an inlet, an ionization source, an analyzer, and a detector, all maintained under high vacuum conditions. Common instrumental setups for MS/MS include:

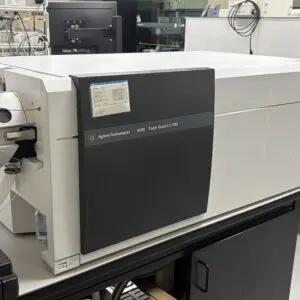

- Triple quadrupole mass spectrometer (QqQ)
- Quadrupole-time of flight (Q-TOF)
- Ion trap
- Fourier transform ion cyclotron resonance (FT-ICR)
- Hybrid mass spectrometers
Principles of Tandem Mass Spectrometry
In tandem mass spectrometry, a precursor ion is selected in the first mass analyzer. It is then fragmented through collisions with gas molecules. The resulting product ions are analyzed in the second mass analyzer.
This process can be accomplished using various instruments. These include instruments that separate the mass analyzers in space, like sectors, transmission quadrupoles, or time-of-flight components. Alternatively, tandem MS in time involves trapping ions in the same location, with multiple separation steps occurring over time using instruments like quadrupole ion traps or FT-ICR.
Different tandem MS/MS experimental modes provide various types of information. These include precursor ion scan, product ion scan, neutral loss scan, and selected reaction monitoring. Fragmentation methods in tandem mass spectrometry include in-source fragmentation, collision-induced dissociation (CID), and higher-energy collisional dissociation (HCD) techniques.
Applications in Structural Elucidation and Quantitative Analysis
Tandem mass spectrometry is widely used for the analysis of biomolecules like proteins and peptides. It is valuable for structural elucidation, allowing for the determination of fragmentation pathways and the identification of specific functional groups. MS/MS is also essential for quantitative analysis, particularly in targeted approaches like multiple reaction monitoring (MRM).
In metabolomics research, tandem mass spectrometry is used to identify and quantify metabolites. It is crucial for large-scale metabolic pathway analysis. Therapeutic drug monitoring of immunosuppressant drugs using MS/MS is also important. It helps avoid toxicity or rejection by requiring individualized drug therapy.
Expanded newborn screening using tandem mass spectrometry can screen for over 30 disorders. It uses only a few drops of blood, with a significantly reduced false-positive rate compared to traditional testing methodologies.
Applications of Mass Spectrometry

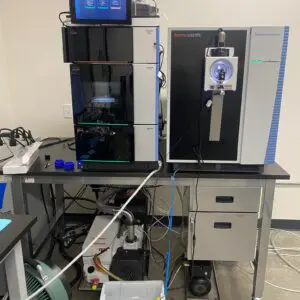

Thermo Fisher TSQ Endura Triple Quadrupole Mass Spectrometer with Vanquish UHPLC
Mass spectrometry is key in many scientific fields. It gives deep insights into molecules. It’s used in proteomics, metabolomics, forensic science, drug testing, and environmental monitoring. This tool helps us understand complex biological systems, solve crimes, check food safety, and monitor our environment.
Proteomics and Protein Characterization
In proteomics, mass spectrometry is the main tool for studying proteins. It helps identify and understand protein changes. Techniques like top-down, middle-down, and bottom-up approaches are used.
Quantitative proteomics lets us measure protein amounts. This is done through stable isotope labeling and label-free methods. It shows how proteins change and work together.
Metabolomics and Small Molecule Analysis
Metabolomics studies small molecules in living systems. Mass spectrometry and NMR are key for identifying and measuring these molecules. This helps understand metabolic pathways and find new treatments.
Mass spectrometry imaging (MSI) shows where molecules are in a sample. Techniques like DESI, MALDI, and secondary ion mass spectrometry imaging are used. This gives us spatial information about molecules.
Forensic Analysis and Drug Testing
Mass spectrometry is vital in forensic science and drug testing. It helps identify and measure drugs and toxins in samples. Forensic scientists use it to analyze evidence from crime scenes.
In the pharmaceutical world, mass spectrometry helps determine drug formulas. This is important for development and safety checks.
Environmental Monitoring and Food Safety
Mass spectrometry is crucial for environmental monitoring and food safety. It detects harmful substances in food and the environment. This ensures our food and environment are safe.
In environmental science, it’s used for many tasks. This includes studying geology, soil quality, water purity, and isotopes in solar wind. NASA also uses it for space research, like studying planetary atmospheres.
Mass spectrometry’s versatility and sensitivity make it essential in many fields. It drives scientific progress. As technology improves, mass spectrometry will help solve more complex problems and uncover molecular secrets.
Conclusion
Mass spectrometry has become a key tool in science, changing many fields. It helps find and measure compounds with great detail. This makes it essential in studying proteins, metabolites, forensic science, and environmental studies.
It’s also vital in finding new drugs, checking product quality, and ensuring food safety. This shows how useful it is in many areas.
New tools and methods in mass spectrometry have made it even better. For example, electrospray ionization (ESI) has improved how it works with liquid chromatographs. But, there are still problems like making sure samples are the same and finding the right standards.
Despite these issues, mass spectrometry is still very important. It helps figure out what proteins are, how much there is, and their structure. It also speeds up DNA sequencing and helps in studying how genes work.
As mass spectrometry keeps getting better, it will help solve more complex questions. It’s already helping in drug studies by looking at how drugs work in the body. It’s also key in finding and studying proteins and biomarkers, which helps us understand diseases better.
